Binocular Stereo Microscope 2X/30mm Optional Auxiliary Objective

Name: Binocular Stereo Microscope 2X30mm Optional Auxiliary Objective
Brand: Sinowon
Price: 1 USD

Brand Name : Sinowon

Model Number : Binocular Zoom A5

Certification : CE

Place of Origin : China

MOQ : 1 Set

Payment Terms : T/T in advance

Supply Ability : 100 sets per month

Delivery Time : 10 days

Packaging Details : plywood

Objective : 0.7x~4.5x Zoom Objective

Zoom Ration : 6.4x

Eyepiece : 10X.15X.20X.30X

Microscope Holder : focusing knobs elasticity adjustable

Contact Now

Binocular Stereo Microscope 2X/30mm Optional Auxiliary Objective

Introduction:

Stereo Microscopes are used in many high power or low power microscopy applications, including PCB inspection, biological analysis, or quality control. Stereo Microscopes are optical microscopes that use incident light illumination for inspection. Stereo Microscopes offer a broad range of magnification options, along with features such as zoom capability or interchangeable objectives in higher-end models. Many Stereo Microscopes also offer video adaptability for video microscopy applications.

Specification:

Model	Binocular Zoom A5
Code#	411-222
Objective	0.7x~4.5x Zoom Objective, Zoom Ration 6.4x
Eyepiece	High eye-point and wide-field eyepiece WF10X/20mm
Eyepiece	Optional WF15X/15mm,WF20X/10mm and object micrometer is available
Magnification	7x~45x,it can extend to 3.5x~180x
Zoom Driver	Horizontal Axial Driver Control Knobs
Working Distance	105mm(effective distance),it can extend to 30mm~165mm
Microscope Head	Binocular Observe Head with 45°incline and 360°rotatable
Microscope Head	Interpupillary distance adjustment range 54~76mm with bilateral ±6 diopter
Microscope Holder	Focus adjustment range 50mmm,focusing knobs elasticity adjustable Drawtube diameter 76mm
Microscope Stand	Pillar diameter 32mm and high 240mm Black & white working board diameter 95mm
Auxiliary Objective	0.5X/177mm,1.5X/45mm and 2X/30mm optional

Product Tags:

Binocular Stereo Microscope

stereoscopic zoom microscope

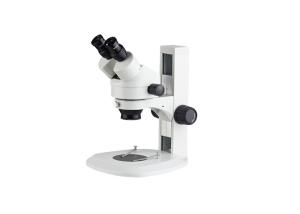

Binocular Stereo Microscope 2X/30mm Optional Auxiliary Objective Images
