Coarse Fine Adjustment Zoom Digital Video Microscope System High magnification

Name: Coarse Fine Adjustment Zoom Digital Video Microscope System High magnification
Brand: Sinowon
Price: 1 USD

China Coarse Fine Adjustment Zoom Digital Video Microscope System High magnification factory

Brand Name : Sinowon

Model Number : VM-100

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100 sets per month

Delivery Time : 5-8days

Packaging Details : plywood

Video Magnification : 24x~158x

Lisfting System : Precision Coarse and fine adjustment

Camera : More than 2MP

SD card : 8G

Power : AC90~240V; 47~63HZ

Zoom Lens : 0.7X~4.5X

Contact Now

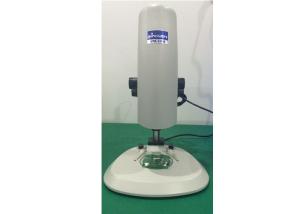

High magnification Coarse Fine Adjustment Zoom Digital Video Microscope

Product features:

This Video Microscope is a good substitute for a traditional optical magnifier, stereo microscpe, comparing microscope, video measurement system and micro-photographing instrument. It can also connect to image analysis software and the images of on-site evidence samples can be captured, inspected, compared and measured, and the on-site scene can enter the micro-world instantly.

Technical Specification:

Product Name	Video Microscope System
Model	VM-100
Zoom Lens	0.7X ~ 4.5X Detented Zoom Lens Zoom Ration 6.5:1
Z-axis Travel	Effective space 150mm； Adjustable Focus travel50mm； Working distance 85mm
Microscope Holder	Precision coarse and fine adjustment
Illumination	Continuous adjustable LED bottom light and LED surface light
Video System	Built-in FULLHD sensor , USB, VGA, SD card integrated camera
Storage Capacity	8G SD Memory Card
VGA Industrial Camera	1>> Simple graphic operation
	2>>Support USB and VGA sync-output, USB interface can connect to mouse and PC system
	3>>Take picture: 30 per second, picture can be made dynamic contract
	4>>Available to setup manual exposure time
	5>>Output function with cross line
	6>>200 million pixel
Power Supply	AC90~240V；47~63HZ
Dimension	290280400 mm
Packing Dimension	445410355 mm
Operation Environment	Temperature:5° －40°C (41° － 104°F)
	Max relative humidity:when temperature reaches 31°C (88°F), it is 80％, when temperature reaches 34°C (93°F), linear decrease 70%,when temperature reaches 37°C (99°F), it is 60％,when temperature reaches 40°C (104°F), it is 50％
	Voltage fluctuation:±10%
	Pollution level:2 (according to IEC664)
	Classification of installation voltage:II(IEC664)

Coarse Fine Adjustment Zoom Digital Video Microscope System High magnification

Coarse Fine Adjustment Zoom Digital Video Microscope System High magnification VM-100 Video Microscope.pdf
