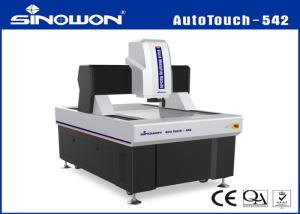

5A Automatic Vision Measuring Machine AutoTouch542

Brand Name : Sinowon

Model Number : AutoTouch 542

Certification : CE

Place of Origin : China

MOQ : 1 Set

Payment Terms : T/T

Supply Ability : 100 sets per month

Delivery Time : 20 days

Packaging Details : plywood

X/Y-axis Travel（mm） : 500x400mm

X/Y/Z 3-axis Linear Scale（mm） : Resolution：0.0001mm

Repeatability : ±2um

Illumination : LED Parallel Contour Illumination

Contact Now

5A Automatic Vision Measuring Machine AutoTouch542

Application:

Fully Auto Vision Measuring Macihne AutoTouch Series is widely used in precision metal industry,electrical indusrty,medical mechanical and other university and research laboratory.

Product Characteristics:

  • Moving gantry structure, you don't need to move specimen;
  • Four-axis CNC fully auto close loop control, realize auto measurement;
  • “00” grade “JINANQING”marble base and pillar is stable and reliable;
  • Imported open type linear scale, resolution is 0.1um, ensure high accuracy and great stability;
  • Imported P grade linear guide, precision grinding ball screw and AC servo motor, ensure accuracy stability of system position;
  • Imported high definition color industry camera, ensure clear observation and stable measurement requirement;
  • 6.5X continue auto zoom lens, precision auto zoom, easy to make pixel calibration for only once;
  • Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;
  • Equipped with imported touch probe, realize 3D measurement;
  • With proprietary fully auto measuring software iMeasuring 4.2, powerful function, simple operation;
  • Optional laser probe, it can also be customized according to customer request;
  • Optional FexQMS Measuring Data Analysis and Real-time monitoring software which enhance program control and reduce material consumption.

Technical Specification:

Product Name 3D AutoTouch High Accuracy Fully Auto Vision Measuring Machine
Model AutoTouch 542
Code#

521-131
X/Y-axis Travel(mm) 500x400mm
Z-axis Travel(mm) 200mm

X/Y/Z 3-axis

Linear Scale(mm)

 Imported Open Linear Scale, resolution:0.0001mm
Guidance Mode Imported P grade linear guide,double-track double slider guide
Operation Mode Joystick controller, Mouse operation, automatic detection program
Measurement Accuracy XY-axis:≤2+L/200(um)
Z-axis:≤5+L/200(um)
Repeatability ±2um
Video System

High definition 1/2" Color CCD Camera,

Image navigation system

6.5X Automatic Zoom Lens; Optical Magnification: 0.7X~4.5X,

Video Magnification: 20X~129X(21.5”monitor)

Field of View(mm)

(Diagonal *Horizontal*Vertical)

 Lens Magnification 0.7x 1x 2.0x 3.0x 4x 4.5x
1/2"CCD 11.43x9.14x6.86

8.00x6.40

x4.80

4.00x3.20

x2.40

2.67x2.13

x1.60

2.00x

1.60x1.20

 1.78x1.42x1.07
Illumination Contour LED Parallel Contour Illumination
Surface 5-ring 8-division 0~255 grade continue adjustable
Software System iMeasuring 4.2 Fully Auto Measuring Software
Loading Weight 30Kg
Working Environment

Temperature 20℃±2℃,Humidity Range<2℃/hr,Humidity 30~80%,Vibration<0.002g,

<15Hz
Power 220V/50Hz/10A
Dimension(mm)

1300*950*1680mm
Weight(Kg)

780Kg
