Name: Video Measuring Machine With High Definition Detented Zoom Lens
Brand: Sinowon
Price: 1 USD

Brand Name : Sinowon

Model Number : iMS-2515F

Certification : CE

Place of Origin : China

MOQ : 1 Set

Payment Terms : T/T In Advance

Supply Ability : 100 sets per month

Delivery Time : 20 work days

Packaging Details : plywood

Metal Table : 608x470mm

Service : OEM service,Design service

After-sale service : Feedback within 2 hours

CCD Camera : High Resolution 700TV Color CCD Camera

Operation System : Support XP，WIN7，WIN8.1，32/64 operating system

Language : English, Simplified Chinese, Traditional Chinese, other language versions can be added

Contact Now

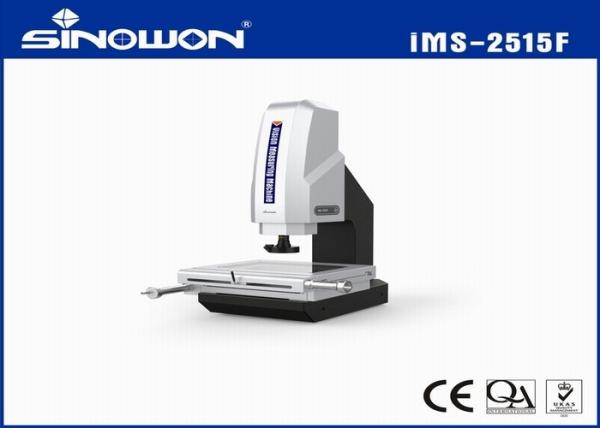

Video Measuring Machine With High Definition Detented Zoom Lens

Product Characteristic:

With high accuracy linear guide and servo motor control system, effecient working travel is 200mm;

With high accuracyJinan Qing marble base and pillar;

With High Definition 700TVL Color CCD;

With 6.5:1 high resolution detented zoom lens;

Support mutiple language such as English, Simple Chinese, Traditional Chinese, Italy, Germany and so on.

Technical Specification:

Mode	iMS-2515F
Code#	521-150F
Metal Table	408x308mm
Glass Table	306x198mm
X/Y-axis Travel	250x150mm
Z-axis Travel	High-precision linear guide and servo motor control system , working travel 200mm
X/Y/Z-axis Travel	0.0005mm
X/Y-axis Accuracy	≤3+L/200(um)
Repeatability	3um
Base and Pillar	High Accuracy Jinan Qing Marble
Illumination System(Software Adjustment)	Surface: Stepless Adjustable 3-ring 8-division LED Cold Illumination
	Contour: LED Parallel Illumination
	LED Laser Navigation Lights
CCD Camera	High Resolution 700TV Color CCD Camera
Zoom lens	6.5:1 High Resolution Detented Zoom Lens
Zoom lens	Magnification:0.7X~4.5X；Video Magnification:24.5X~156X
Working Environment	Temperature:19°~24°
	Humidity:45% ~75%RH
	Vibration<0.002g,<15Hz
Measuring Software	iMeasuring 2.2
Operation System	Support XP,WIN7,WIN8.1,32/64 operating system
Language	English, Simplified Chinese, Traditional Chinese, other language versions can be added
Dimension(WDH)	790x617x1000mm
Net Weight	175Kg

Standard Delivery:

Product Name	Code#	Product Name	Code#
2.5D Measuring Software	IM2.2	Video Capture Card	527-130
Contour LED Parallel Illumination	425-100	DELL PC System	581-960
Surface 3R/8D LED Illumination	425-130	AV Video Cable	581-940
Laser Positioning System	581-330	RS232 Data Cable	581-930
Detented Zoom Lens	421-100	Optical Calibration Block	581-800
HD700TVL Color Camera	484-130	Operation Manual	/

Optional Accessories:
