High Precision Digital Optical Toolmaker Measuring Microscope STM-2515A

Product Categories
DongGuan Sinowon Precision Instrument Co., Ltd. （2）
Contact Now

High Precision Digital Optical Toolmaker Measuring Microscope STM-2515A

Brand Name : Sinowon

Model Number : STM-2015A

Certification : CE

Place of Origin : China

MOQ : 1 Set

Payment Terms : T/T in advance

Supply Ability : 100 sets per month

Delivery Time : 20 work days

Packaging Details : plywood

X/Y-axis travel : 250x150mm

Scale Resolution : 0.0005mm

Accuracy : 2+L/200) μm

Eyepiece : WF10/20

Objectives : 5x,10x,20x,50x,100x

Display : DRO

Contact Now

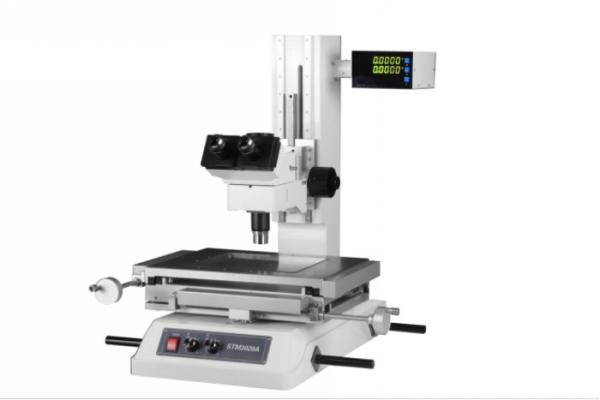

Digital ToolMaker Measuring Microscope STM-2015A

Product Features:

* Precision working stage travel:250x150mm
* Digital moving resolution:0.0005mm
* Multifunctional digital readout:D400
* Aperture diaphragms in the transmitted illumination and reflected illumination system as standard feature;
* The quick-release system, which is especially useful in long-stroke measurements;
* Available with the Vision Unit for upgrading to a vision measuring system.

Application:

* Measuring laboratories and workshops
* Quality management
* Small parts vendors(automotive industry and mechanical engineering
* Measurement of isolated and unisolated wires)
* Plastic and casting parts

Technical Specifications :

Microscope Model

STM-2515A

Code #

532-150

X/Y-axis travel

250x150mm

Scale Resolution

0.0005mm

XY Stage Measuring Accuracy at 20ºC.

(2+L/200) μm L: measuring length

Observation Image

Obverse image (Erect Image is available)

Eyepiece Tube

Binocular Eyepiece: WF10/20

Objective Lens

Only 5x is standard delivery; Optional: 10X, 20X, 50x 100x

Contour Illumination

Adjustable LED

Surface Illumination

Adjustable LED

Z Axis Travel Range

Standard focus travel:150mm, 200mm is optional

Z Axis Focusing

Manual focusing (Coarse/fine)

XY Stage Floating Function

Quick release mechanism

Display Unit Function

Zero setting, Direction switching, Data output via RS-232

Power Supply

AC220/50HZ; AC110V/60Hz

Optional Accessories

High-Precision Rotary Table RT4(D:165mm), RT5(262mm)

Digital Readout DP300

Quick Measuring Software QM2.0

CCD adapter and CCD camera



Optical Specification:

Name

Objective

Eyepiece WF10/22

N.A.

W.D.(mm)

f(mm)’

R(um)

±▽p(um)

Magnification

Visual Field(mm)

5x

0.15

11.6

40

2.1

16.3

50x

¢4.4

10x

0.3

6.3

20

0.9

3.1

100x

¢2.2

20x

0.4

10.3

10

0.69

1.8

200x

¢1.1

50x

0.8

2

4

0.34

0.4

500x

¢0.44

100x

0.8

1.96

2

0.34

0.2

100x

¢0.22


























Product Tags:

digital measuring microscope



toolmakers microscope working


China High Precision Digital Optical Toolmaker Measuring Microscope STM-2515A factory

High Precision Digital Optical Toolmaker Measuring Microscope STM-2515A Images
