Wide Application Video Measuring System With High Accuracy Repeatability

Name: Wide Application Video Measuring System With High Accuracy Repeatability
Brand: Sinowon
Price: 1 USD

China Wide Application Video Measuring System With High Accuracy Repeatability factory

Brand Name : Sinowon

Model Number : iMS-2515F

Certification : CE

Place of Origin : China

MOQ : 1 Set

Payment Terms : T/T In Advance

Supply Ability : 100 sets per month

Delivery Time : 20 work days

Packaging Details : plywood

Optical Illumination : Parallel transmission illumination

Glass Stage : 306x198mm

X/Y-axis Stroke : 250x150mm

Z-axis Stroke : High-precision linear guide

X/Y/Z-axis Stroke : 0.0005mm

X/Y-axis Accuracy : ≤3+L/200(um)

Contact Now

Wide Application Video Measuring System With High Accuracy Repeatability

Working Stage Accuracy:

Working Stage X/Y-axis Cross verticality ≤0.003mm;
Working StageX/Y-axis and Z-axis verticality≤0.02mm;
Glass stage and lens verticality≤0.005mm;
With 8-group glass linear scale compensation mode – ensure accuracy.

Optical imaging:

High Definition 6.5:1 0.7~4.5X Detented Zoom Lens;
1/3”Color High Resolution 700TVL Camera;
HD image processing card,video window resolution 768*576;

Technical Specification:

Mode	iMS-2515F
Code#	521-150F
Metal Stage	408x308mm
Glass Stage	306x198mm
X/Y-axis Stroke	250x150mm
Z-axis Stroke	High-precision linear guide and servo motor control system , working travel 200mm
X/Y/Z-axis Stroke	0.0005mm
X/Y-axis Accuracy	≤3+L/200(um)
Repeatability	3um
Base and Pillar	High Accuracy Jinan Qing Marble
Illumination System(Software Adjustment)	Surface: Stepless Adjustable 3-ring 8-division LED Cold Illumination
	Contour: LED Parallel Illumination
	LED Laser Navigation Lights
CCD Camera	High Resolution 700TV Color CCD Camera
Zoom lens	6.5:1 High Resolution Detented Zoom Lens
Zoom lens	Magnification:0.7X~4.5X；Video Magnification:24.5X~156X
Working Environment	Temperature:19°~24°
	Humidity:45% ~75%RH
	Vibration<0.002g,<15Hz

Standard Delivery:

Product Name	Code#	Product Name	Code#
2.5D Measuring Software	IM2.2	Video Capture Card	527-130
Contour LED Parallel Illumination	425-100	DELL PC System	581-960
Surface 3R/8D LED Illumination	425-130	AV Video Cable	581-940
Laser Positioning System	581-330	RS232 Data Cable	581-930
Detented Zoom Lens	421-100	Optical Calibration Block	581-800
HD700TVL Color Camera	484-130	Operation Manual	/

Optional Accessories:

Product Name	Code#	Product Name	Code#
Electronic Zoom Lens	421-140	Rotary Tables RT 2	581-520
12.5X Detented Zoom Lens	421-100	Rotary Tables RT 3	581-530
Coaxial Detented Zoom Lens	421-120	Working Cupboard ST 05	581-650
0.5X Auxiliary Objective	423-050	Swivel Center Support	581-850
2X Auxiliary Objective	423-200	Foot Switch	581-350

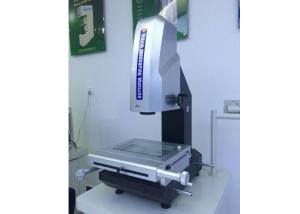

Wide Application Video Measuring System With High Accuracy Repeatability
