Auto Measuring Video Measuring System For Bearings / Motors / Precision Hardware

Product Categories

DongGuan Sinowon Precision Instrument Co., Ltd. （2）

Contact Now

Name: Auto Measuring Video Measuring System For Bearings Motors Precision Hardware
Brand: Sinowon
Price: 1 USD

Brand Name : Sinowon

Model Number : Auto Vision 432

Certification : CE

Place of Origin : China

MOQ : 1 Set

Payment Terms : T/T in advance

Supply Ability : 100 sets per month

Delivery Time : 25 work days

Packaging Details : plywood

Application : Industries and research institutes, universities, institutions and laboratory

Load Capacity : 30Kg

Dimension : 1060*820*1680mm

Weight : 650Kg

X/Y-axis Accuracy : ≤3+L/200(um)

Z-axis : ≤4+L/200(um)

Contact Now

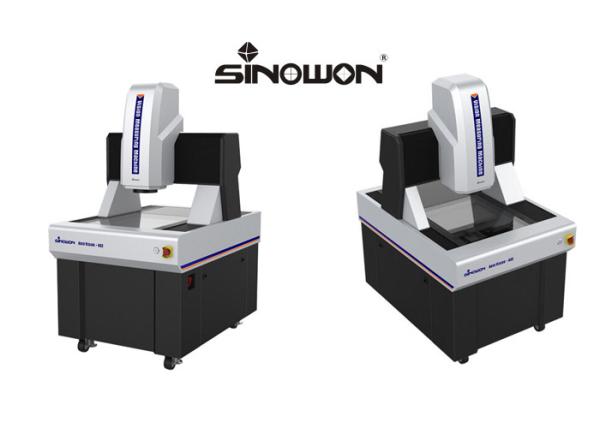

Auto Measuring Video Measuring System For Bearings / Motors / Precision Hardware

Advantages:

Auto Position, Auto Focus, Auto Zoom, Auto Lighting, Auto Measurement.

Optional Accessories:

* Imported MCP Touch Probe (#581-721)

* Manual Coaxial Lens (#421-121)
* Imported Laser Sensor (#581-361)

* 2X Auxiliary Objective (#423-200)

* 3D Measuring Software (#Im 3.1)

* 0.5X Auxiliary Objective (#423-050)

Technical specification:

2.5D Model		AutoVision432
Code#		520-121
X/Y-axis Travel		400x300mm
Load Capacity		30Kg
Dimension		10608201680mm
Weight		650Kg
Z-axis Travel		200mm
X/Y/Z 3-axis Linear Scale		Imported Open Linear Scale,Resolution:0.0005mm
Guidance Mode		Precision Linear Guide, Double-track Double Slider Guide
Operation Mode		Joystick Controller, Mouse Operation, Automatic Detection Program
Accuracy		X/Y-axis:≤3+L/200(um)
		Z-axis:≤4+L/200(um)
Repeatability		±2um
Video System		Imported 1/3"Color CCD Camera
		6.5X Motorized Coaxial Zoom Lens
		Optical Magnification:0.7X-4.5X；Video Magnification:22X~145X(19" Monitor)
Illumination	Contour	LED Parallel Cold Illumination
	Surface	Adjustable 0~255 grades 5-ring 8-division Illumination

Standard Delivery:

Product Name	Code#	Product Name	Code#
Fully-auto measuring software	IM 4.1	6.5x Automatic Zoom Lens	421-161
Calibration Block	581-801	Surface 5R/8D LED Illumination	425-141
Motion Controller	526-111	Contour Parallel LED Illumination	425-131
Imported 0.5um Linear Scale	581-201	LED Coaxial Cold Illumination	/
Data Processor	564-301	1/3”Color Camera	484-123
CCD Image Navigation	581-331	Video Capture Card	527-131
Joystick	581-871	PC/Monitor	/
Certification	/	Operation Manual	/
